Name: 1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Μηχανή ανίχνευσης γραμμωτών κωδίκων

1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading

Λεπτομέρειες:

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	10

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Μοντέλο Αρ.:	DE2120	Τύπος διεπαφής:	USB
Ταχύτητα σάρωσης:	25cm/s	Στοιχείο σάρωσης:	ΚΟΚ
Ψήφισμα:	4mil	Αισθητήρας εικόνας:	640*480
Λειτουργία σάρωσης:	Αυτόματη σάρωση, συνεχής	Εκτυπώ:	25%
Τροφοδοτικό:	DC 3.3V, 160mA Εργασία	Καλώδιο FFC:	5 εκατοστά
ύψος πτώσης:	1,2 μ.	Διαστάσεις:	21,2mm16,0mm12,0mm
Πηγή φωτός:	Κόκκινο φως LED 625±10nm (στόχος), 5600K LED (Φωτισμός)	CPU:	τριανταδυάμπιτος
Βάρος:	<4 γρ
Επισημαίνω:	1D 2D Barcode Scanner Module , DC 3.3V Barcode Scan Engine , 160mA QR Code Reader Module

1D 2D Cheap QR Code Fixed Barcode Scanner CMOS Reader Module

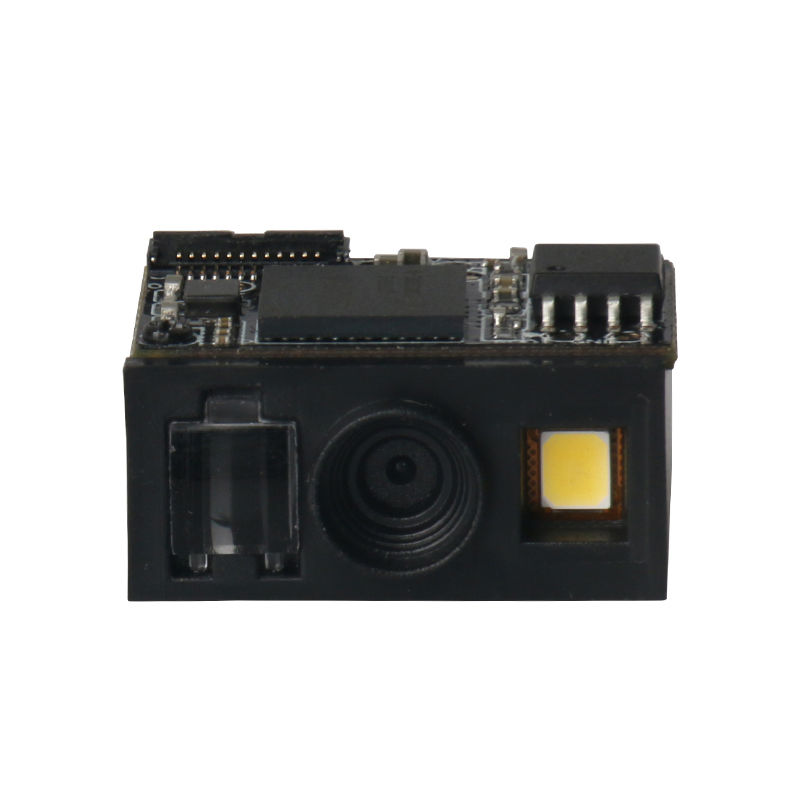

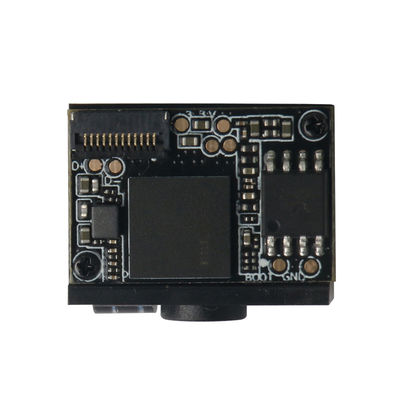

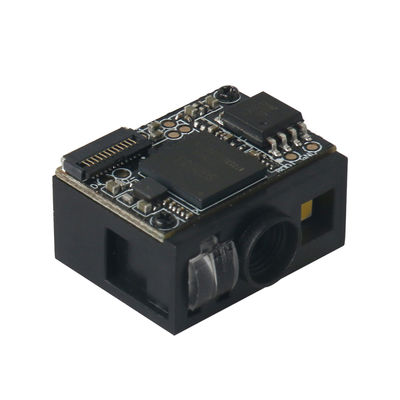

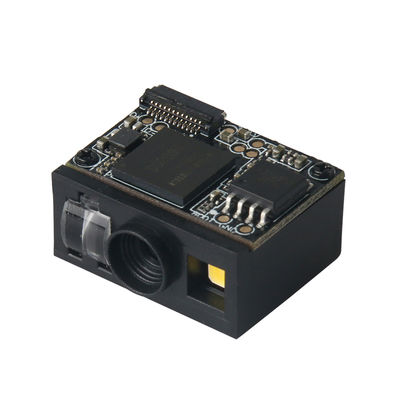

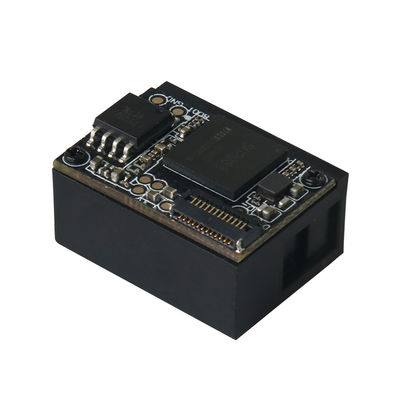

The DE2120 is a practical embedded barcode scanner module featuring advanced CMOS image recognition technology and an intelligent image recognition system. Capable of scanning universal 1D and 2D codes, it supports multiple interfaces including USB and TTL, and can read barcodes from paper, goods, screens, and other media. Easily integrated into various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Key Features

Advanced CMOS image recognition technology
Supports both 1D and 2D barcode scanning
Multiple interface options (USB, TTL)
Compact and lightweight design
Wide scanning angle and depth of field
Robust construction for industrial environments

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan angle	Pitch:±45°, Roll: ±360°, Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Weight	<4g
Dimensions	21.2mm(L) × 16.0mm(W) × 12.0mm(H)
Communication Mode	USB(USB-KBW,USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V @160mA(Work)

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post

2D Codes: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

Environmental Specifications

Parameter	Specification
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes for high Temp. (60ºC), 30 minutes for low Temp. (-20ºC)
Transport vibration Test	10H@125RPM
