High-performance 2D Barcode Scanner Module with 640*480 Resolution and 3mil/0.076mm Reading Precision at 65cm/s Scan Speed

Λεπτομέρειες:

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	15

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Μοντέλο Αρ.:	DE2290D	Τύπος διεπαφής:	USB
Ταχύτητα σάρωσης:	65cm/s	Στοιχείο σάρωσης:	ΚΟΚ
Ψήφισμα:	3mil/0.076mm	Αισθητήρας εικόνας:	640*480
Λειτουργία σάρωσης:	Manual, Continuous, Auto Sense, Command Control	Εκτυπώ:	20%
Διάσταση:	21,35 mm Υ * 15,50 mm Π * 11,40 mm Υ	Βάρος:	3,5 γραμμάρια
Τροφοδοτικό:	DC 3.3V, 200mA Work	ύψος πτώσης:	1,2 μ.
Βάθος πεδίου:	30mm~550mm	Καλώδιο FFC:	5 εκατοστά
Οπτικό πεδίο:	41° * 31°
Επισημαίνω:	640*480 resolution Barcode Scanner Module , 3mil/0.076mm reading precision Barcode Scan Engine , 65cm/s scan speed Embedded Barcode Scanner

Wholesale OEM Embedded 2D Barcode Scanner Module Arduino Barcode Scanning Engine

2D Embedded QR Code Reader Mini Barcode Scanner Module

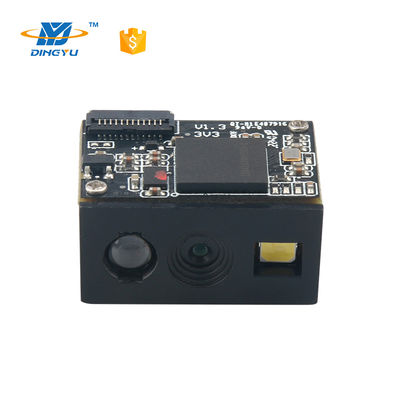

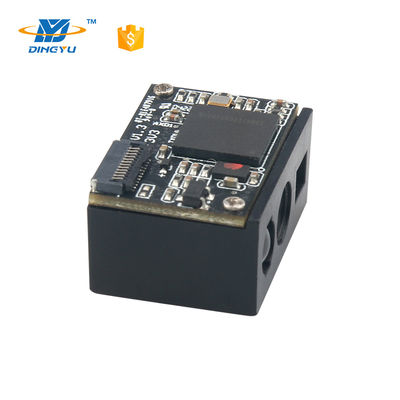

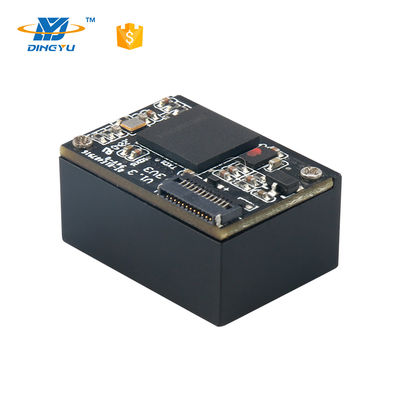

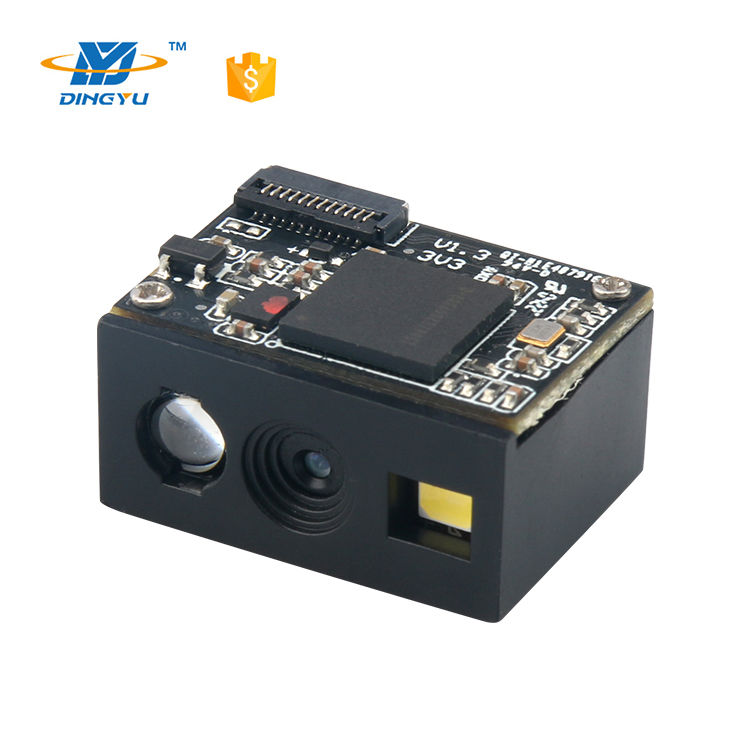

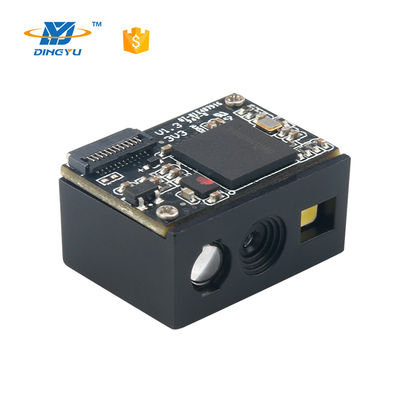

The DE2290D is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

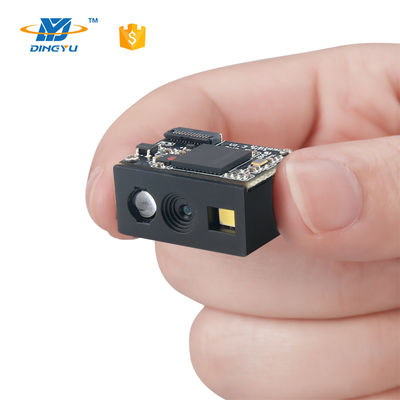

With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens. Its compact integrated design allows for easy installation in a wide range of equipment.

Ideal for use in self-service machines, price checking systems, lockers, and other industrial applications.

Product Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~550mm (varies by barcode type)
Decoding Speed	65CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Prompt Method	LED indicator light, buzzer (external circuit)
Field of View	41° × 31°
Scan Angle	Roll: ±360°, Pitch: ±60°, Skew: ±55°

Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban Brazil Bank Code, GS1 Composite

2D Codes: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Japan post, Postnet

Weight	About 3.5g
Dimensions	21.35mm L × 15.50mm W × 11.40mm H
FPC Cable Length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA (Average Work), 95mA (Standby), 38mA (Sleep)
