DS2806-2D Wired USB RS232 2D Handheld Barcode Scanner
The DS2806-2D is a high-performance 2D wired barcode scanner featuring advanced CMOS image recognition technology. Capable of reading barcodes from paper, goods, screens, and other media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D and 2D barcodes with ease
- High-performance processor enables fast decoding (4mil resolution)
- Supports multiple languages and operating systems
- Dual interface options: USB and RS232
- Widely compatible with supermarket POS, warehouse management, mobile payment systems, and chain store operations
Technical Specifications
Performance Parameters
| Scan Type | CMOS |
| Light Source | Red aim light, white fill light |
| CPU | 32-bit |
| Resolution | 640*480 |
| Minimum Resolution | ≥4mil/0.1mm (PCS90%, CODE 39) |
| Decoding Speed | 25CM/S |
| Depth of Field | 35mm-300mm |
| Scan Mode | Manual, Auto Sense, Continuous |
| Indicator | LED, Buzzer |
| Scan Angle | Roll±360°, Pitch±50°, Skew±50° |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
Supported Symbologies
| 1D Barcodes | Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT |
| 2D Barcodes | PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec |
Physical Parameters
| Weight | ≈170g (USB) |
| Dimensions | L163.5mm × W65.0mm × H89.5mm |
| Interface Type | USB |
| Power Supply | DC 5V@80mA (work) |
| IP Rating | IP42 |
| Supported Systems | Windows, Mac OS, IOS, Linux, Unix, Android |
Environmental Specifications
| Operating Temperature | -20ºC to 55ºC |
| Storage Temperature | -20ºC to 60ºC |
| Humidity | 5% to 95% (non-condensing) |
| Drop Height | 1.5m |
| Temperature Test | 30 minutes for high temp (60ºC), 30 minutes for low temp (-20ºC) |
| Transport Vibration Test | 10H@125RPM |
Standard Accessories
| Cable | USB, connects the scanner to a host device and provides charging |
| Receiver | Used to receive and transmit scanner data |

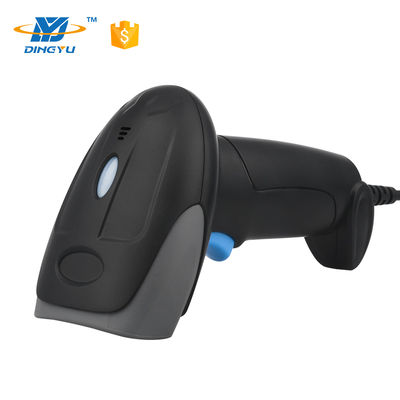

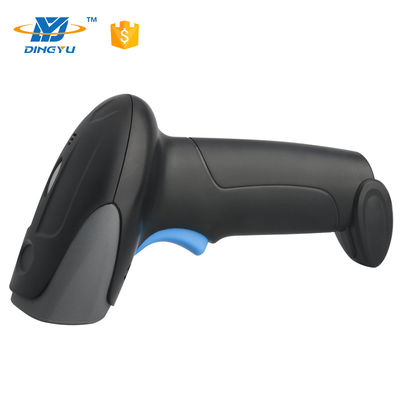

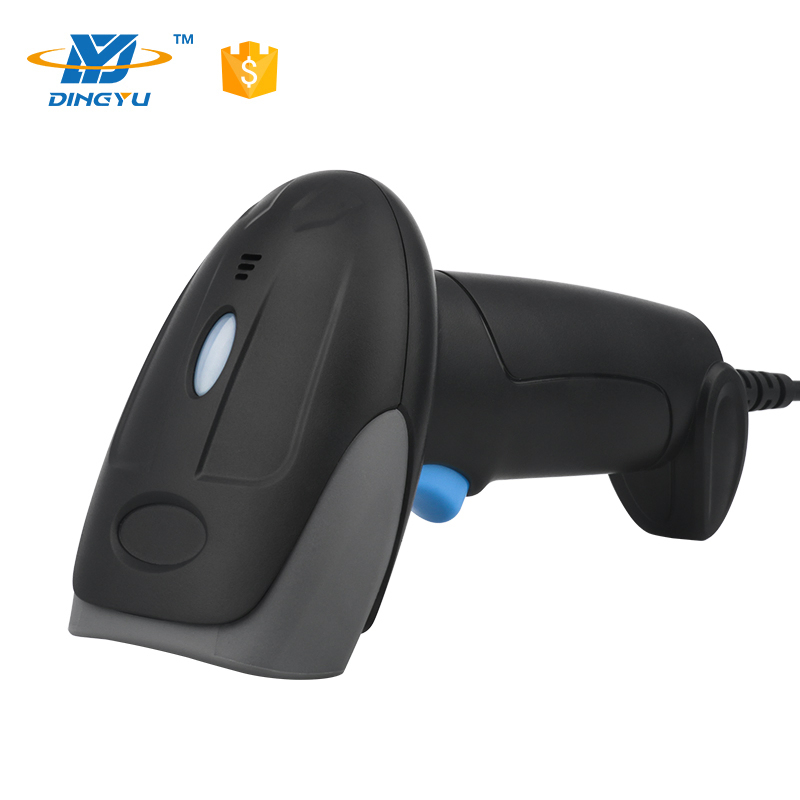

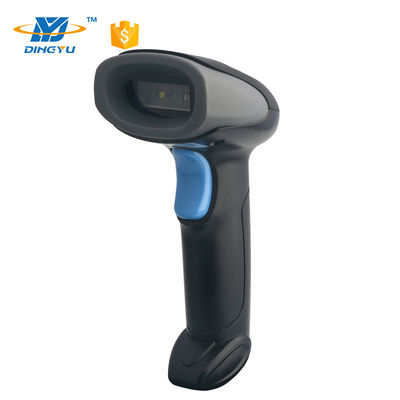

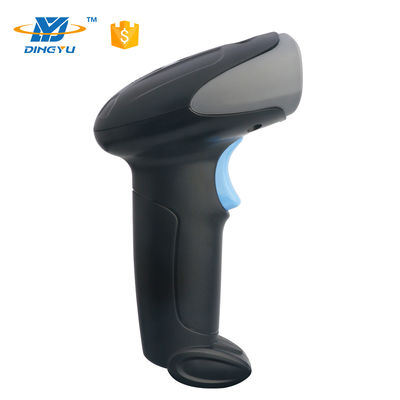

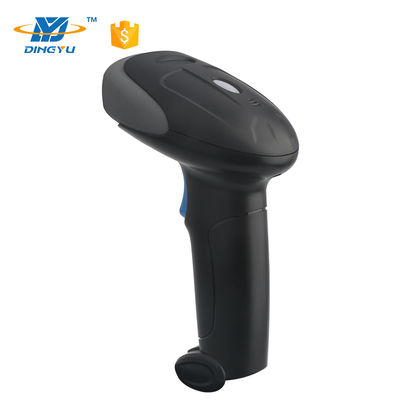

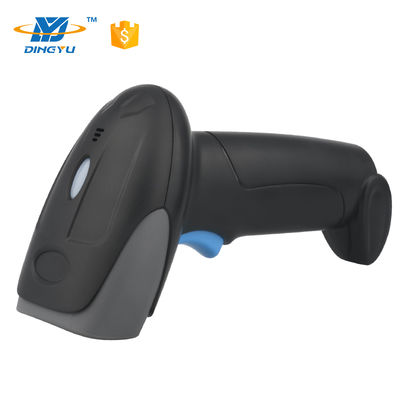

Product Images
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We maintain a professional QC team and utilize advanced testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners pass CE, FCC, and ROSH certifications.
Q2: What is your quality control process?
We conduct rigorous testing including wire bend tests for 1 million cycles, button tests for 1 million presses, and comprehensive device testing before shipment.
Q3: What is the warranty period for your barcode scanners?
We provide a 12-month warranty for all our barcode scanners.
Q4: How do you maintain stable performance?
We implement flow line production throughout the manufacturing process. Each product undergoes at least four quality tests before delivery.
Q5: Do you offer OEM or ODM services?
Yes, we provide OEM services including custom branding, packaging, and documentation. Our technical team also supports ODM services for specialized requirements.
Q6: What are your company's strengths?
As a professional scanner manufacturer, we maintain dedicated departments for R&D, production, and marketing/sales, each led by experienced directors to ensure product excellence and customer satisfaction.
Q7: Do I need to install drivers for this scanner?
No, our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
