DS6530-1D High Performance 1D CCD Wired Barcode Scanner
The DS6530-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for versatile use, it efficiently reads barcodes from paper, products, screens, and various media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D barcodes with ease
- High-performance processor enables fast decoding (4mil resolution)
- Supports multiple languages and operating systems
- Dual interface options: USB and RS232
- Optimized for supermarket, warehouse, mobile payment, and chain store applications
Technical Specifications
Performance Parameters
| Communication |
USB |
| Scan Type |
Linear CCD Sensor |
| Resolution |
2500 |
| Resolution |
≥3mil/0.076mm (PCS90%, CODE 39) |
| Depth of Field |
30mm~700mm |
| Decoding Speed |
300 times/second |
| Scan Modes |
Manual, continuous, auto-sense, flashing |
| Prompt Methods |
Buzzer, LED, vibration |
| Scan Angle |
Roll: ±30°, Pitch: ±60°, Skew: ±60°
(Test Conditions: CODE39, 10mil/0.25mm, PCS90%) |
| Print Contrast Signal |
≥20% |
| Ambient Light |
Dark environment, indoor natural light |
| Supported Symbologies |
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc. |
Physical Parameters
| Weight |
Approximately 230g (scanner only) |
| Dimensions |
152mm (L) × 66mm (W) × 95mm (H) |
| Communication Modes |
USB, RS232 |
| Interface Types |
USB, DB9 |
| Power Supply |
DC 5V@80mA (operating) |
Environmental Specifications
| Operating Temperature |
-20°C to 50°C |
| Storage Temperature |
-40°C to 60°C |
| Humidity |
5% to 95% (non-condensing) |
| Transport Vibration Test |
10H@125RPM |
Included Accessories
| Cables |
USB Cable: Connects the DS6530-1D to a host device
RS232 Cable: Connects the DS6530-1D to a host device with USB supply cable
|

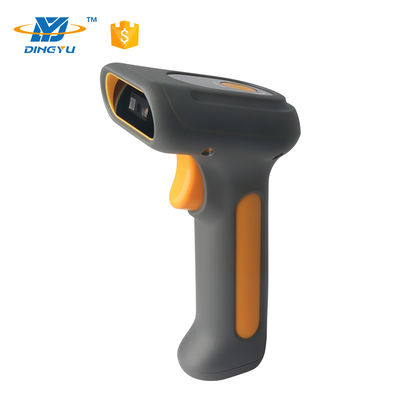

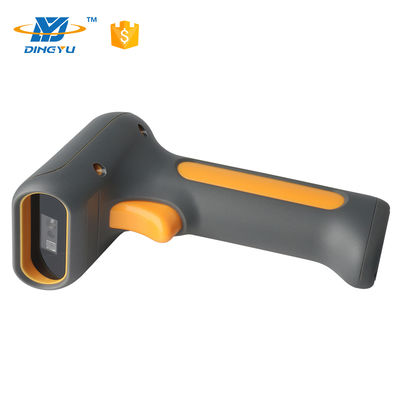

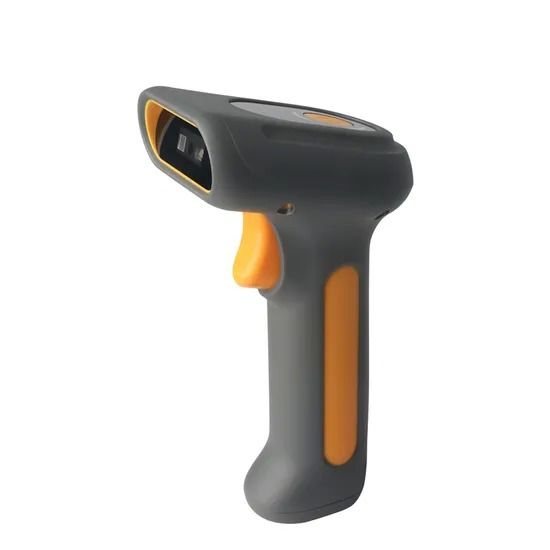

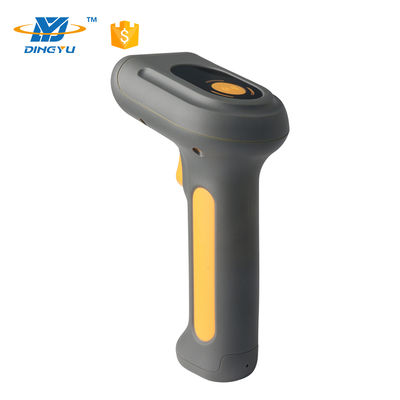

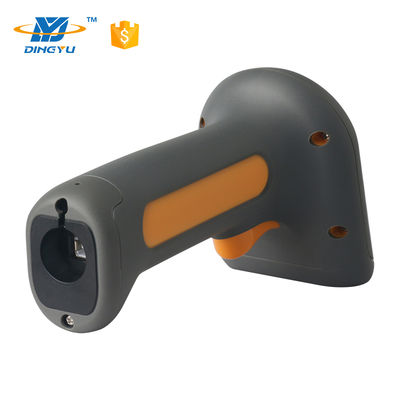

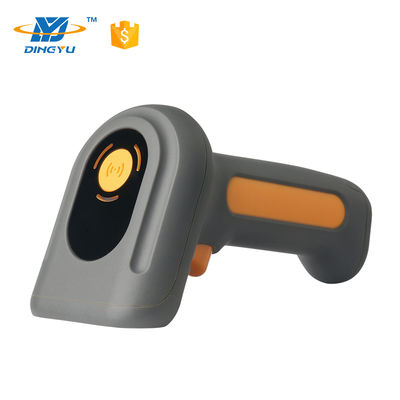

Product Images
Application Scenarios
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: As professional manufacturers and developers of barcode scanners with 18 years of field experience, we maintain rigorous quality standards. Our professional QC team utilizes advanced testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners are certified to meet CE, FCC, and ROHS standards.
Q2: What quality control measures do you implement?
DYscan: We conduct extensive durability testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.
Q3: What is the warranty period for your barcode scanners?
DYscan: We provide a 12-month warranty for all our barcode scanners.
Q4: How do you maintain stable performance across your products?
DYscan: We employ flow line production throughout our manufacturing process. Each product undergoes at least four quality tests before delivery to ensure consistent performance.
Q5: Do you offer OEM or ODM services for barcode scanners?
DYscan: We provide comprehensive OEM services including custom branding for logos, packaging, and documentation. Our technical team also supports ODM services for specialized requirements.
Q6: What are your company's strengths?
DYscan: As a professional scanner manufacturer, we maintain specialized departments each led by experienced directors. Our R&D department focuses on product innovation, the production department handles manufacturing and testing, while our Marketing and Sales department provides comprehensive customer support.
Q7: Are drivers required for your scanners?
DYscan: No driver installation is needed. Our scanners support plug-and-play functionality across multiple platforms including Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
